Nichimart Cube

• Replaceable dispensing nozzle sets can be used for various purposes.It is also possible to exchange to a multichannel nozzle unit as an option.
• Two types of dispensing methods, the disposable tip and the cleaning type nozzle unit are possible.
• NichiMasterCUBE, software for creating protocols and system adjustments, is included as standard accessories.
• With the multi-position deck linked with software, it is easy to create and modify protocols by intuitive operation.
• Error handling functions such as detections of liquid level and clogging are installed.
• I/O port for external devices connection is equipped.
• It corresponds to 384 well plate dispensing.
  Disposable tips to be used have compatibility with other Nichiryo products.
• Compatibility with WINDOWS®7/8/8.1(32/64bit)/10(64bit)

[Feature 1] Protocols can be fully created and modified without restriction

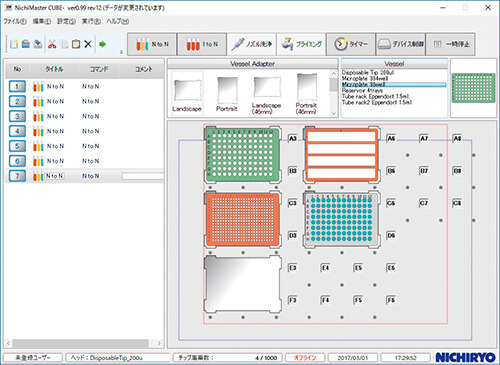

The Nichimart CUBE with software for creating protocols. Protocols can be easily created and modified by combining vessel adaptors with multiple positions in the work deck. When the container is placed at the specified position on the work deck, it instantly determined the coordinates. In addition to various microplates, non-standard containers can be additionally registered.
*Needs to be connected with PC. No memory functions incorporated on the main body.


[Feature 2] Detection of liquid level and liquid clogging

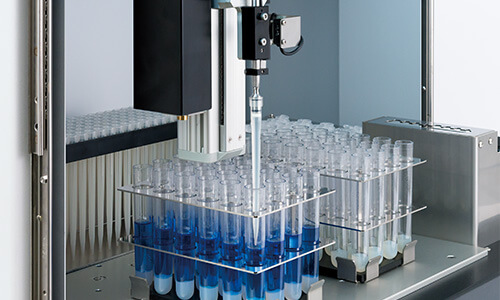

Liquid level and clogging can be detected by real time communication control with an error message.


[Feature 3] Protocols can be fully created and modified without restriction

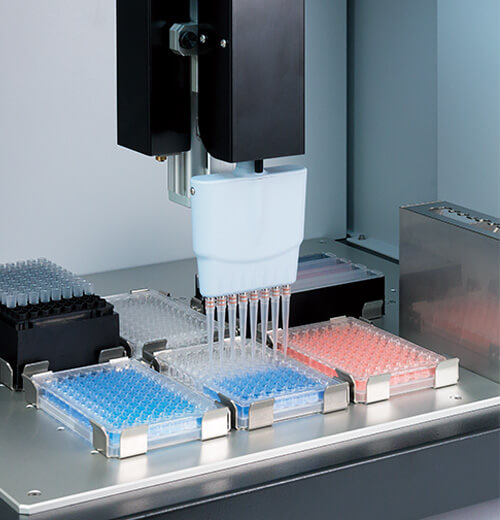

The Nichimart CUBE comes with a standard 200µL nozzle. It can be replaced by either 30µL, 1000µL or 1200µL nozzle unit. 8 channel nozzle unit and Cleaning nozzle unit are also available as an option.

Standard	200μL nozzle unit
Option	30μL nozzle unit 1000μL nozzle unit 1200μL nozzle unit 8channel unit (220μL) Cleaning nozzle unit    1) Syringe type pump unit    2) Single cleaning probe    3) Wash bowl ＊3 Necessary items as a set available for using cleaning nozzle.

[Feature 4] Equipped with I/O port for external device connection
Standard built-in I/O port, on/off of external devices such as plate shaker, plate heater and vacuum pump, etc. can be controlled. By this feature, various applications can be automated. It also supports serial communication control RS-232C as an option.

Optional nozzle unit	Remarks
30μL nozzle Unit	range of accuracy guarantee: min.vol.3~30μL
200μL nozzle Unit	range of accuracy guarantee: min.vol.10~220μL
1000μL nozzle Unit	range of accuracy guarantee: min.vol.100~1000μL
1200μL nozzle Unit	range of accuracy guarantee: min.vol.100~1200μL
8channel nozzle Unit	range of accuracy guarantee: min.vol.20~220μL
Cleaning nozzle Unit	range of accuracy guarantee:10%stroke
Dimension to Install	600mm(W)×590mm(D)×575mm(H) (without PC)
Work deck dimension	350mm(X)×300mm(Y)×140mm(Z)
Capacity	Max. 7 pcs (microplate) (depend on a dispense head)
Nozzle Unit	Standard:200μL / Option:30μL,1000μL,1200μL,8channel ,Cleaning nozzle
Nozzle Unit Volume range	30μL	3～30μL
	200μL	10～220μL
	1000μL	100～1000μL
	1200μL	100～1200μL
	8channel	20～220μL
	Cleaning nozzle	100μL～10mL
Weight	Approx. 45kg (without PC)
Power source	AC100~240V 50/60Hz 100VA (Power consumption varies by system configurations.)
PC spec	Windows®7/8/8.1(32/64bit)/10 (64bit) RS232C serial port　CD-ROM

* PC with above specification required to create protocol and adjust system.

Accuracy･Precision

Nozzle Unit	Volume(μL)	AC(%)	CV(%)
30μL	3	±5.0	≦5.0
	30	±1.0	≦1.0
200μL	20	±3.0	≦1.0
	200	±0.8	≦0.5
1000μL	100	±3.0	≦1.0
	1000	±0.8	≦0.5
1200μL	120	±3.0	≦1.0
	1200	±0.8	≦0.5
8channel (200μL)	20	±3.0	≦1.0
	200	±0.8	≦0.5
Cleaning nozzle Unit	Full stroke	±1.0	≦0.2

Tip for robot systems

	Cat. No	Name	Volume(μL)	Contents	Nozzle Unit
	00-HT-F30R	Racked tip for robotic system	3～30μL	3840 (384×10racks)	30μL
	00-HT-F30RB	Racked tip for robotic system (sterilized)
	00-HT-FS	Bulk tip for robotic system	10～220μL	1000	200μL, 8channel
	00-HT-FSR	Racked tip for robotic system		960 (96×10racks)
	00-HT-FSRB	Racked tip for robotic system (sterilized)
	00-CT-MR	Clean tip M (filtered,sterilized)	10～200μL
	00-HT-KL	Bulk tip for robotic system	100～1000μL	1000	1000μL
	00-HT-KLR	Racked tip for robotic system		960 (96×10racks)
	00-HT-KLRB	Racked tip for robotic system (sterilized)
	0N-CAP-100-010	Long clean tip (filtered,sterilized)	100～1200μL	960 (96×10racks)	1200μL

* Product specifications and discriptions are subjected to change without notice.
