Nichimart

Various preparation can be managed such as sample dispensing, reagent handling, dilution and etc.
Two of 5 different nozzle modules can be selected.
High ratio of dilution is possible by selecting two different volume range modules.
High throughput dilution handling is possible by selecting fixed and tip nozzle modules.
Various preparations can be managed such as sample dispensing, reagent handling, dilution and etc.
Liquid level sensing function can detect sample existence, blockage, or other various errors.
Work station software called "NichiMaster" is coming with NichiMart to handle various applications.

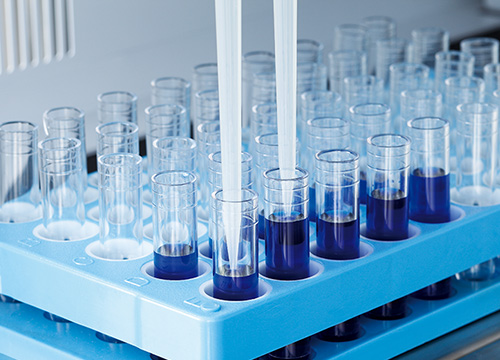

Feature1

Z-axis for each module can be controlled individually.
Ex. Each sample of different volume of liquid level sensing can be detected automatically.

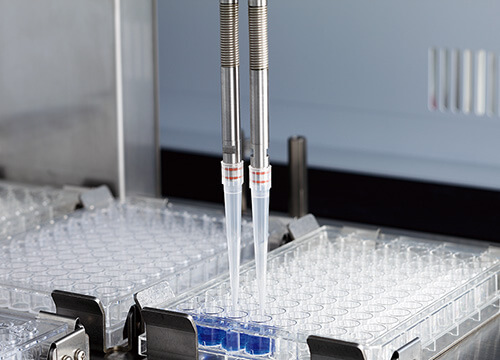

Feature2
Nozzle pitch for two modules can be varied to suit well pitch or tube pitch.

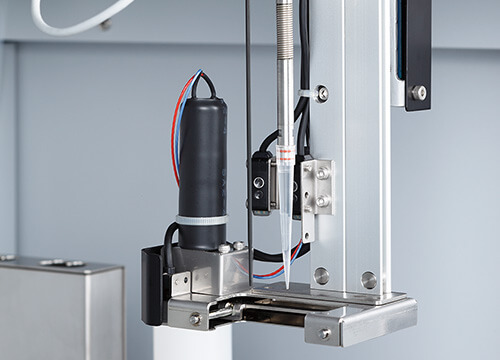

Feature3
Different functions can be dispatched to each module by selecting fixed and tip nozzle modules such as "sample dispensing" and "buffer dispensing".

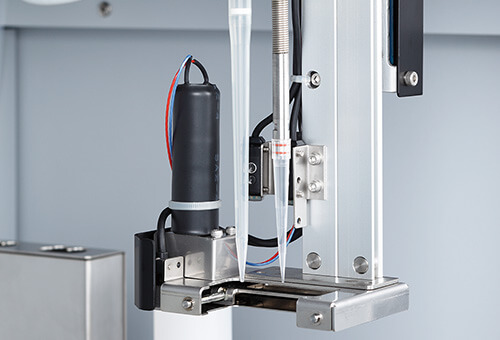

Feature4
Selection of 1200ul long-tip and 200ul tip can manage separate volume ranges which may be nessesary for sample dispensing and reagent handling.

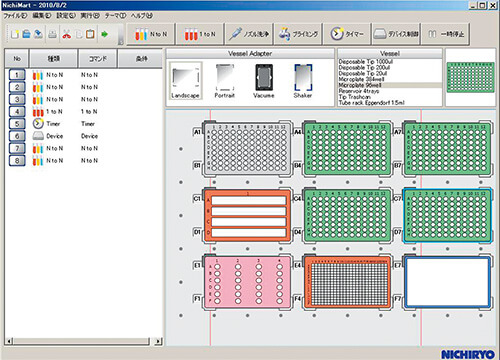

Work station software "NichiMaster"

• NichiMaster is contained as standard component of NichiMart.
• GUI software provides easy protocol programing.
• Original design of plates or containers can be designed and registered.
• Various errors can be managed by real time interface control.
  Ex. It can detect shortage of sample volume or clot.
• Picking can be controlled due to downloading from outer source.
  Ex. Cherry picking.

Specifications

Description	Specification
Standart component *Max. 12 plates can be placed simultaneously.	Nichimart workstation Two modules from 5 types of module PC (Windows) Operation software (NichiMaster)
Tip nozzle module S	30ul tip nozzle module
Tip nozzle module M	200ul tip nozzle module
Tip nozzle module L	1000ul tip nozzle module
Tip nozzle module LL	1200ul long tip nozzle module
Fixed nozzle module	Fixed nozzle module Syringe pump unit Wash bowl unit
Mount frame	Keyboard container Monitor arm Trash box
Unit dimension	850mm(W)×700mm(D)×800mm(H) (ex.PC)
Workdeck dimension	590mm(W)×295mm(D)×150mm(H)
Deck capacity	Max. 12 plates
Volume range	3-30μL	30μL disposable tip	*Minimum setting: 1μL
	10-200μL	200μL disposable tip
	100-1000μL	1000μL disposable tip
	100-1200μL	1200μL disposable tip
Weight	Approx.70kg (ex. PC)
Power	AC100V±10% 50/60Hz 200VA
Required PC	Windows®7/32bit(×86)/CPU：from 1GHz/memory ：from 1GB/CD-ROM Drive/RS232C Port

＊PC with above specification required to create protocol and adjust system.

Accuracy･Precision

Nozzle Unit	Volume(μL)	AC(%)	CV(%)
30μL	3	±5.0	≦5.0
	30	±1.0	≦1.0
200μL	20	±3.0	≦1.0
	200	±0.8	≦0.5
1000μL	100	±3.0	≦1.0
	1000	±0.8	≦0.5
1200μL	100	±3.0	≦1.0
	1200	±0.8	≦0.5

Tip for robot systems

	Cat. No	Description	Volume	Contents
	00-HT-FS	Bulk tip for robotic dispenser	10~220	1000
	00-HT-FSR	Racked tip for robotic dispenser		960
	00-HT-FSR-B	Sterilized racked tip for robotic dispenser
	00-CT-MR	Clean tip M	10~200
	00-HT-F30R	Racked tip for robotic dispenser	3~30	3840
	00-HT-F30RB	Sterilized racked tip for robotic dispenser
	00-HT-KL	Bulk tip for robotic dispenser	100~1000	1000
	00-HT-KLR	Racked tip for robotic dispenser		960
	00-HT-KLR-B	Sterilized racked tip for robotic dispenser
	0N-CAP-100-010	Long clean tip	100~1200	960

* Product specifications and discriptions are subjected to change without notice.
